| This information was previously available atCluster Replication. |
HBase provides a cluster replication mechanism which allows you to keep one cluster’s state synchronized with that of another cluster, using the write-ahead log (WAL) of the source cluster to propagate the changes.Some use cases for cluster replication include:
Backup and disaster recovery
Data aggregation
Geographic data distribution
Online data ingestion combined with offline data analytics
| Replication is enabled at the granularity of the column family.Before enabling replication for a column family, create the table and all column families to be replicated, on the destination cluster. |
Cluster replication uses a source-push methodology.An HBase cluster can be a source (also called master or active, meaning that it is the originator of new data), a destination (also called slave or passive, meaning that it receives data via replication), or can fulfill both roles at once.Replication is asynchronous, and the goal of replication is eventual consistency.When the source receives an edit to a column family with replication enabled, that edit is propagated to all destination clusters using the WAL for that for that column family on the RegionServer managing the relevant region.
When data is replicated from one cluster to another, the original source of the data is tracked via a cluster ID which is part of the metadata.In HBase 0.96 and newer (HBASE-7709), all clusters which have already consumed the data are also tracked.This prevents replication loops.
The WALs for each region server must be kept in HDFS as long as they are needed to replicate data to any slave cluster.Each region server reads from the oldest log it needs to replicate and keeps track of its progress processing WALs inside ZooKeeper to simplify failure recovery.The position marker which indicates a slave cluster’s progress, as well as the queue of WALs to process, may be different for every slave cluster.
The clusters participating in replication can be of different sizes.The master cluster relies on randomization to attempt to balance the stream of replication on the slave clusters.It is expected that the slave cluster has storage capacity to hold the replicated data, as well as any data it is responsible for ingesting.If a slave cluster does run out of room, or is inaccessible for other reasons, it throws an error and the master retains the WAL and retries the replication at intervals.
|
Consistency Across Replicated Clusters
How your application builds on top of the HBase API matters when replication is in play. HBase’s replication system provides at-least-once delivery of client edits for an enabled column family to each configured destination cluster. In the event of failure to reach a given destination, the replication system will retry sending edits in a way that might repeat a given message. HBase provides two ways of replication, one is the original replication and the other is serial replication. In the previous way of replication, there is not a guaranteed order of delivery for client edits. In the event of a RegionServer failing, recovery of the replication queue happens independent of recovery of the individual regions that server was previously handling. This means that it is possible for the not-yet-replicated edits to be serviced by a RegionServer that is currently slower to replicate than the one that handles edits from after the failure. The combination of these two properties (at-least-once delivery and the lack of message ordering) means that some destination clusters may end up in a different state if your application makes use of operations that are not idempotent, e.g. Increments. To solve the problem, HBase now supports serial replication, which sends edits to destination cluster as the order of requests from client. See Serial Replication. |
|
Terminology Changes
Previously, terms such as master-master, master-slave, and cyclical were used to describe replication relationships in HBase.These terms added confusion, and have been abandoned in favor of discussions about cluster topologies appropriate for different scenarios. |

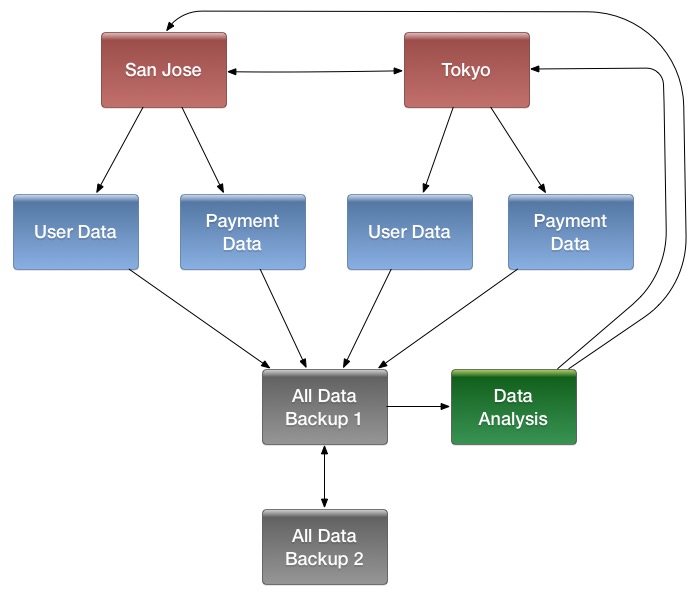

A central source cluster might propagate changes out to multiple destination clusters, for failover or due to geographic distribution.
A source cluster might push changes to a destination cluster, which might also push its own changes back to the original cluster.
Many different low-latency clusters might push changes to one centralized cluster for backup or resource-intensive data analytics jobs.The processed data might then be replicated back to the low-latency clusters.
Multiple levels of replication may be chained together to suit your organization’s needs.The following diagram shows a hypothetical scenario.Use the arrows to follow the data paths.
HBase replication borrows many concepts from the statement-based replication design used by MySQL.Instead of SQL statements, entire WALEdits (consisting of multiple cell inserts coming from Put and Delete operations on the clients) are replicated in order to maintain atomicity.
Configure and start the source and destination clusters.Create tables with the same names and column families on both the source and destination clusters, so that the destination cluster knows where to store data it will receive.
All hosts in the source and destination clusters should be reachable to each other.
If both clusters use the same ZooKeeper cluster, you must use a different zookeeper.znode.parent, because they cannot write in the same folder.
On the source cluster, in HBase Shell, add the destination cluster as a peer, using the add_peer command.
On the source cluster, in HBase Shell, enable the table replication, using the enable_table_replication command.
Check the logs to see if replication is taking place. If so, you will see messages like the following, coming from the ReplicationSource.
LOG.info("Replicating "+clusterId + " -> " + peerClusterId);
Adds a replication relationship between two clusters.
ID — a unique string, which must not contain a hyphen.
CLUSTER_KEY: composed using the following template, with appropriate place-holders: hbase.zookeeper.quorum:hbase.zookeeper.property.clientPort:zookeeper.znode.parent. This value can be found on the Master UI info page.
STATE(optional): ENABLED or DISABLED, default value is ENABLED
list all replication relationships known by this cluster
Enable a previously-disabled replication relationship
Disable a replication relationship. HBase will no longer send edits to thatpeer cluster, but it still keeps track of all the new WALs that it will needto replicate if and when it is re-enabled. WALs are retained when enabling or disablingreplication as long as peers exist.
Disable and remove a replication relationship. HBase will no longer send edits to that peer cluster or keep track of WALs.
Enable the table replication switch for all its column families. If the table is not found in the destination cluster then it will create one with the same name and column families.
Disable the table replication switch for all its column families.
Note: this feature is introduced in HBase 2.1
Serial replication supports to push logs to the destination cluster in the same order as logs reach to the source cluster.
In replication of HBase, we push mutations to destination cluster by reading WAL in each region server. We have a queue for WAL files so we can read them in order of creation time. However, when region-move or RS failure occurs in source cluster, the hlog entries that are not pushed before region-move or RS-failure will be pushed by original RS(for region move) or another RS which takes over the remained hlog of dead RS(for RS failure), and the new entries for the same region(s) will be pushed by the RS which now serves the region(s), but they push the hlog entries of a same region concurrently without coordination.
This treatment can possibly lead to data inconsistency between source and destination clusters:
there are put and then delete written to source cluster.
due to region-move / RS-failure, they are pushed by different replication-source threads to peer cluster.
if delete is pushed to peer cluster before put, and flush and major-compact occurs in peer cluster before put is pushed to peer cluster, the delete is collected and the put remains in peer cluster, but in source cluster the put is masked by the delete, hence data inconsistency between source and destination clusters.
Set the serial flag to true for a repliation peer. You can either set it to true when creating a replication peer, or change it to true later.
The serial replication feature had been done firstly in HBASE-9465 and then reverted and redone in HBASE-20046. You can find more details in these issues.
The VerifyReplication MapReduce job, which is included in HBase, performs a systematic comparison of replicated data between two different clusters. Run the VerifyReplication job on the master cluster, supplying it with the peer ID and table name to use for validation. You can limit the verification further by specifying a time range or specific families. The job’s short name is verifyrep. To run the job, use a command like the following:
+
$ HADOOP_CLASSPATH=`${HBASE_HOME}/bin/hbase classpath` "${HADOOP_HOME}/bin/hadoop" jar "${HBASE_HOME}/hbase-mapreduce-VERSION.jar" verifyrep --starttime=<timestamp> --endtime=<timestamp> --families=<myFam> <ID> <tableName>+The VerifyReplication command prints out GOODROWS and BADROWS counters to indicate rows that did and did not replicate correctly.

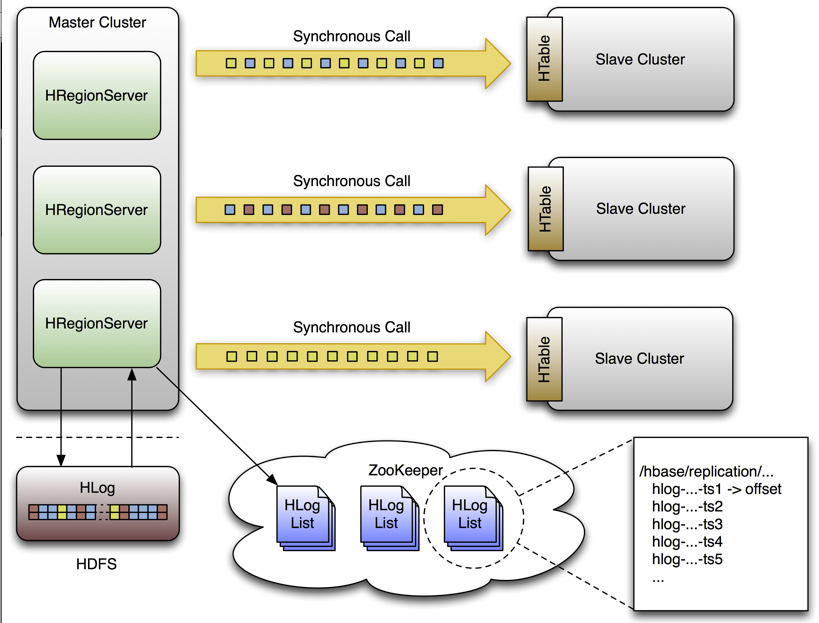

A single WAL edit goes through several steps in order to be replicated to a slave cluster.
An HBase client uses a Put or Delete operation to manipulate data in HBase.
The region server writes the request to the WAL in a way allows it to be replayed if it is not written successfully.
If the changed cell corresponds to a column family that is scoped for replication, the edit is added to the queue for replication.
In a separate thread, the edit is read from the log, as part of a batch process.Only the KeyValues that are eligible for replication are kept.Replicable KeyValues are part of a column family whose schema is scoped GLOBAL, are not part of a catalog such as hbase:meta, did not originate from the target slave cluster, and have not already been consumed by the target slave cluster.
The edit is tagged with the master’s UUID and added to a buffer.When the buffer is filled, or the reader reaches the end of the file, the buffer is sent to a random region server on the slave cluster.
The region server reads the edits sequentially and separates them into buffers, one buffer per table.After all edits are read, each buffer is flushed using Table, HBase’s normal client.The master’s UUID and the UUIDs of slaves which have already consumed the data are preserved in the edits they are applied, in order to prevent replication loops.
In the master, the offset for the WAL that is currently being replicated is registered in ZooKeeper.
The first three steps, where the edit is inserted, are identical.
Again in a separate thread, the region server reads, filters, and edits the log edits in the same way as above.The slave region server does not answer the RPC call.
The master sleeps and tries again a configurable number of times.
If the slave region server is still not available, the master selects a new subset of region server to replicate to, and tries again to send the buffer of edits.
Meanwhile, the WALs are rolled and stored in a queue in ZooKeeper.Logs that are archived by their region server, by moving them from the region server’s log directory to a central log directory, will update their paths in the in-memory queue of the replicating thread.
When the slave cluster is finally available, the buffer is applied in the same way as during normal processing.The master region server will then replicate the backlog of logs that accumulated during the outage.
When replication is active, a subset of region servers in the source cluster is responsible for shipping edits to the sink.This responsibility must be failed over like all other region server functions should a process or node crash.The following configuration settings are recommended for maintaining an even distribution of replication activity over the remaining live servers in the source cluster:
Set replication.source.maxretriesmultiplier to 300.
Set replication.source.sleepforretries to 1 (1 second). This value, combined with the value of replication.source.maxretriesmultiplier, causes the retry cycle to last about 5 minutes.
Set replication.sleep.before.failover to 30000 (30 seconds) in the source cluster site configuration.
By default, the codec used for replication between clusters strips tags, such as cell-level ACLs, from cells.To prevent the tags from being stripped, you can use a different codec which does not strip them.Configure hbase.replication.rpc.codec to use org.apache.hadoop.hbase.codec.KeyValueCodecWithTags, on both the source and sink RegionServers involved in the replication.This option was introduced in HBASE-10322.
HBase replication maintains its state in ZooKeeper.By default, the state is contained in the base node /hbase/replication.This node contains two child nodes, the Peers znode and the RS znode.
Peers Znode
The peers znode is stored in /hbase/replication/peers by default.It consists of a list of all peer replication clusters, along with the status of each of them.The value of each peer is its cluster key, which is provided in the HBase Shell.The cluster key contains a list of ZooKeeper nodes in the cluster’s quorum, the client port for the ZooKeeper quorum, and the base znode for HBase in HDFS on that cluster.
RS Znode
The rs znode contains a list of WAL logs which need to be replicated.This list is divided into a set of queues organized by region server and the peer cluster the region server is shipping the logs to.The rs znode has one child znode for each region server in the cluster.The child znode name is the region server’s hostname, client port, and start code.This list includes both live and dead region servers.
When a master cluster region server initiates a replication source to a slave cluster, it first connects to the slave’s ZooKeeper ensemble using the provided cluster key . It then scans the rs/ directory to discover all the available sinks (region servers that are accepting incoming streams of edits to replicate) and randomly chooses a subset of them using a configured ratio which has a default value of 10%. For example, if a slave cluster has 150 machines, 15 will be chosen as potential recipient for edits that this master cluster region server sends.Because this selection is performed by each master region server, the probability that all slave region servers are used is very high, and this method works for clusters of any size.For example, a master cluster of 10 machines replicating to a slave cluster of 5 machines with a ratio of 10% causes the master cluster region servers to choose one machine each at random.
A ZooKeeper watcher is placed on the ${zookeeper.znode.parent}/rs node of the slave cluster by each of the master cluster’s region servers.This watch is used to monitor changes in the composition of the slave cluster.When nodes are removed from the slave cluster, or if nodes go down or come back up, the master cluster’s region servers will respond by selecting a new pool of slave region servers to replicate to.
Each master cluster region server has its own znode in the replication znodes hierarchy.It contains one znode per peer cluster (if 5 slave clusters, 5 znodes are created), and each of these contain a queue of WALs to process.Each of these queues will track the WALs created by that region server, but they can differ in size.For example, if one slave cluster becomes unavailable for some time, the WALs should not be deleted, so they need to stay in the queue while the others are processed.See rs.failover.details for an example.
When a source is instantiated, it contains the current WAL that the region server is writing to.During log rolling, the new file is added to the queue of each slave cluster’s znode just before it is made available.This ensures that all the sources are aware that a new log exists before the region server is able to append edits into it, but this operations is now more expensive.The queue items are discarded when the replication thread cannot read more entries from a file (because it reached the end of the last block) and there are other files in the queue.This means that if a source is up to date and replicates from the log that the region server writes to, reading up to the "end" of the current file will not delete the item in the queue.
A log can be archived if it is no longer used or if the number of logs exceeds hbase.regionserver.maxlogs because the insertion rate is faster than regions are flushed.When a log is archived, the source threads are notified that the path for that log changed.If a particular source has already finished with an archived log, it will just ignore the message.If the log is in the queue, the path will be updated in memory.If the log is currently being replicated, the change will be done atomically so that the reader doesn’t attempt to open the file when has already been moved.Because moving a file is a NameNode operation , if the reader is currently reading the log, it won’t generate any exception.
By default, a source attempts to read from a WAL and ship log entries to a sink as quickly as possible.Speed is limited by the filtering of log entries Only KeyValues that are scoped GLOBAL and that do not belong to catalog tables will be retained.Speed is also limited by total size of the list of edits to replicate per slave, which is limited to 64 MB by default.With this configuration, a master cluster region server with three slaves would use at most 192 MB to store data to replicate.This does not account for the data which was filtered but not garbage collected.
Once the maximum size of edits has been buffered or the reader reaches the end of the WAL, the source thread stops reading and chooses at random a sink to replicate to (from the list that was generated by keeping only a subset of slave region servers). It directly issues a RPC to the chosen region server and waits for the method to return.If the RPC was successful, the source determines whether the current file has been emptied or it contains more data which needs to be read.If the file has been emptied, the source deletes the znode in the queue.Otherwise, it registers the new offset in the log’s znode.If the RPC threw an exception, the source will retry 10 times before trying to find a different sink.
If replication is not enabled, the master’s log-cleaning thread deletes old logs using a configured TTL.This TTL-based method does not work well with replication, because archived logs which have exceeded their TTL may still be in a queue.The default behavior is augmented so that if a log is past its TTL, the cleaning thread looks up every queue until it finds the log, while caching queues it has found.If the log is not found in any queues, the log will be deleted.The next time the cleaning process needs to look for a log, it starts by using its cached list.
| WALs are saved when replication is enabled or disabled as long as peers exist. |
When no region servers are failing, keeping track of the logs in ZooKeeper adds no value.Unfortunately, region servers do fail, and since ZooKeeper is highly available, it is useful for managing the transfer of the queues in the event of a failure.
Each of the master cluster region servers keeps a watcher on every other region server, in order to be notified when one dies (just as the master does). When a failure happens, they all race to create a znode called lock inside the dead region server’s znode that contains its queues.The region server that creates it successfully then transfers all the queues to its own znode, one at a time since ZooKeeper does not support renaming queues.After queues are all transferred, they are deleted from the old location.The znodes that were recovered are renamed with the ID of the slave cluster appended with the name of the dead server.
Next, the master cluster region server creates one new source thread per copied queue, and each of the source threads follows the read/filter/ship pattern.The main difference is that those queues will never receive new data, since they do not belong to their new region server.When the reader hits the end of the last log, the queue’s znode is deleted and the master cluster region server closes that replication source.
Given a master cluster with 3 region servers replicating to a single slave with id 2, the following hierarchy represents what the znodes layout could be at some point in time.The region servers' znodes all contain a peers znode which contains a single queue.The znode names in the queues represent the actual file names on HDFS in the form address,port.timestamp.
/hbase/replication/rs/
1.1.1.1,60020,123456780/
2/
1.1.1.1,60020.1234 (Contains a position)
1.1.1.1,60020.1265
1.1.1.2,60020,123456790/
2/
1.1.1.2,60020.1214 (Contains a position)
1.1.1.2,60020.1248
1.1.1.2,60020.1312
1.1.1.3,60020, 123456630/
2/
1.1.1.3,60020.1280 (Contains a position)
Assume that 1.1.1.2 loses its ZooKeeper session.The survivors will race to create a lock, and, arbitrarily, 1.1.1.3 wins.It will then start transferring all the queues to its local peers znode by appending the name of the dead server.Right before 1.1.1.3 is able to clean up the old znodes, the layout will look like the following:
/hbase/replication/rs/
1.1.1.1,60020,123456780/
2/
1.1.1.1,60020.1234 (Contains a position)
1.1.1.1,60020.1265
1.1.1.2,60020,123456790/
lock
2/
1.1.1.2,60020.1214 (Contains a position)
1.1.1.2,60020.1248
1.1.1.2,60020.1312
1.1.1.3,60020,123456630/
2/
1.1.1.3,60020.1280 (Contains a position)
2-1.1.1.2,60020,123456790/
1.1.1.2,60020.1214 (Contains a position)
1.1.1.2,60020.1248
1.1.1.2,60020.1312
Some time later, but before 1.1.1.3 is able to finish replicating the last WAL from 1.1.1.2, it dies too.Some new logs were also created in the normal queues.The last region server will then try to lock 1.1.1.3’s znode and will begin transferring all the queues.The new layout will be:
/hbase/replication/rs/
1.1.1.1,60020,123456780/
2/
1.1.1.1,60020.1378 (Contains a position)
2-1.1.1.3,60020,123456630/
1.1.1.3,60020.1325 (Contains a position)
1.1.1.3,60020.1401
2-1.1.1.2,60020,123456790-1.1.1.3,60020,123456630/
1.1.1.2,60020.1312 (Contains a position)
1.1.1.3,60020,123456630/
lock
2/
1.1.1.3,60020.1325 (Contains a position)
1.1.1.3,60020.1401
2-1.1.1.2,60020,123456790/
1.1.1.2,60020.1312 (Contains a position)
The following metrics are exposed at the global region server level and at the peer level:
source.sizeOfLogQueue
number of WALs to process (excludes the one which is being processed) at the Replication source
source.shippedOps
number of mutations shipped
source.logEditsRead
number of mutations read from WALs at the replication source
source.ageOfLastShippedOp
age of last batch that was shipped by the replication source
source.completedLogs
The number of write-ahead-log files that have completed their acknowledged sending to the peer associated with this source. Increments to this metric are a part of normal operation of HBase replication.
source.completedRecoverQueues
The number of recovery queues this source has completed sending to the associated peer. Increments to this metric are a part of normal recovery of HBase replication in the face of failed Region Servers.
source.uncleanlyClosedLogs
The number of write-ahead-log files the replication system considered completed after reaching the end of readable entries in the face of an uncleanly closed file.
source.ignoredUncleanlyClosedLogContentsInBytes
When a write-ahead-log file is not closed cleanly, there will likely be some entry that has been partially serialized. This metric contains the number of bytes of such entries the HBase replication system believes were remaining at the end of files skipped in the face of an uncleanly closed file. Those bytes should either be in different file or represent a client write that was not acknowledged.
source.restartedLogReading
The number of times the HBase replication system detected that it failed to correctly parse a cleanly closed write-ahead-log file. In this circumstance, the system replays the entire log from the beginning, ensuring that no edits fail to be acknowledged by the associated peer. Increments to this metric indicate that the HBase replication system is having difficulty correctly handling failures in the underlying distributed storage system. No dataloss should occur, but you should check Region Server log files for details of the failures.
source.repeatedLogFileBytes
When the HBase replication system determines that it needs to replay a given write-ahead-log file, this metric is incremented by the number of bytes the replication system believes had already been acknowledged by the associated peer prior to starting over.
source.closedLogsWithUnknownFileLength
Incremented when the HBase replication system believes it is at the end of a write-ahead-log file but it can not determine the length of that file in the underlying distributed storage system. Could indicate dataloss since the replication system is unable to determine if the end of readable entries lines up with the expected end of the file. You should check Region Server log files for details of the failures.
| Option | Description | Default |
|---|---|---|
zookeeper.znode.parent |
The name of the base ZooKeeper znode used for HBase |
/hbase |
zookeeper.znode.replication |
The name of the base znode used for replication |
replication |
zookeeper.znode.replication.peers |
The name of the peer znode |
peers |
zookeeper.znode.replication.peers.state |
The name of peer-state znode |
peer-state |
zookeeper.znode.replication.rs |
The name of the rs znode |
rs |
replication.sleep.before.failover |
How many milliseconds a worker should sleep before attempting to replicate a dead region server’s WAL queues. |
|
replication.executor.workers |
The number of region servers a given region server should attempt to failover simultaneously. |
1 |
You can use the HBase Shell command status 'replication' to monitor the replication status on your cluster. The command has three variations:* status 'replication' — prints the status of each source and its sinks, sorted by hostname.* status 'replication', 'source' — prints the status for each replication source, sorted by hostname.* status 'replication', 'sink' — prints the status for each replication sink, sorted by hostname.
=============================
replication摘要
cluster replication使用source push策略。一个hbase cluster可以是一个source(也叫
master或者active，意味着它是新数据的起源者)，可以是一个destination(也叫slave或者passive,
意味着通过replication接收数据)，或者同时充当这2种角色。replication是异步的，并且replication
的目标是最终一致性。当source在一个有着replication enable的column family上接收编辑时，这个edit
会被传播到所有的destination cluster,传播通过使用WAL,RegionServer上的column family就是用WAL来管理相关
region。
当数据从一个cluster复制到另一个cluster时，数据的original source会被通过一个cluster ID追踪。cluster ID
是每个cluster的元数据的一部分。在HBASE 0.96以及更新的版本，所有消费了数据的cluster也会被追踪。这防止了
replication loop。
每个region server的WAL必须保存在HDFS中，才能用于把数据复制到任意slave cluster。每个从最老的日志中读取数据的region server,需要复制和跟踪正在处理的WAL的进程。这样做是为了简化failure recovery。指引了一个slave cluster的进程的position marker，和处理replication的WAL队列，在每个slave cluster都可以是不同的。
参加replication的cluster可以是不同大小的。master cluster随机平衡在每个slave cluster的replication的流。
slave cluster有着能保持replicated data的能力，这是被希望的，以及任何它负责消化的数据。如果一个slave cluster退出了房间，或者因为其它原因不可访问，它会抛出一个error,并且master保持WAL,并且间隔性重试replication。
consistency across replicated clusters
keep track of logs
每个master cluster的region server在replication znodes层次结构中有它自己的znode。它为每个peer cluster包含了一个znode(如果5个slave cluster,5个znode被创建),每个znode都包含了一个WAL的待处理队列。每个队列
都会追踪region server创建的WAL,但他们可以在大小上有所不同。例如，如果一个slave cluster在一段时间内变得不可用，WAL不应该被删除，所以他们需要保留在队列中，当其它wal在被处理时。可以看rs.failover.details作为例子。
当一个source被初始化时，它包含了region server正在写的当前WAL。在日志回滚期间，新的file会在它可用之前，被添加到每个slave cluster的znode里。这保证了所有的source都注意到一个新的log已经存在了，在region server可以追加edit到该日志之前。但这个操作目前是更昂贵的。队列的item会被丢弃，当replication thread不能从一个文件读取更多的entries时（因为它到达了最后一个block的结尾），并且在队列中还有其它文件。这意味着如果source是最新的并且根据region server写入的日志进行复制，则读取当前文件的“结尾”将不会删除队列中的项目。
如果日志不再使用或者日志数量超过hbase.regionserver.maxlogs，则日志可以归档，因为插入速度比刷新区域快。 当日志归档时，会通知源线程该日志的路径已更改。 如果一个特定的源已经完成了归档日志，它将会忽略该消息。 如果日志在队列中，则路径将在内存中更新。 如果日志当前正在被复制，则更改将以原子方式完成，以便读取器在已移动时不会尝试打开该文件。 由于移动文件是NameNode操作，如果读者正在读取日志，它不会生成任何异常。
